SiC: Powering Electronics Industry Innovations

Introduction: The Pivotal Role of Silicon Carbide in Modern Electronics

In the rapidly evolving landscape of the electronics industry, the quest for materials that can deliver higher power density, greater efficiency, and superior performance under extreme conditions is relentless. Silicon Carbide (SiC), a compound semiconductor material composed of silicon (Si) and carbon (C), has emerged as a transformative technology, particularly in power electronics and high-frequency applications. Its exceptional physical and electronic properties far surpass those of traditional silicon, paving the way for groundbreaking innovations across diverse sectors including automotive, renewable energy, industrial manufacturing, and telecommunications. As demand for more compact, energy-efficient, and robust electronic systems escalates, SiC is no longer a niche material but a foundational building block for next-generation electronics. This article delves into the multifaceted role of silicon carbide in the electronics industry, exploring its applications, the advantages of custom SiC solutions, critical design and manufacturing considerations, and how to strategically source these advanced materials. Understanding the capabilities of custom silicon carbide products is becoming increasingly vital for engineers, procurement managers, and technical buyers aiming to stay at the forefront of technological advancement.

The significance of SiC lies in its wide bandgap, high thermal conductivity, high breakdown electric field strength, and high electron saturation velocity. These characteristics enable SiC-based devices to operate at significantly higher voltages, temperatures, and switching frequencies compared to their silicon counterparts. This translates into tangible benefits such as reduced energy losses, smaller component sizes, lower cooling requirements, and improved system reliability, making SiC power devices and SiC semiconductor applications key enablers of innovation.

Unlocking Efficiency: Key Applications of SiC in the Electronics Industry

The superior properties of Silicon Carbide have unlocked a new echelon of performance and efficiency in a wide array of electronic applications. Its adoption is rapidly accelerating as industries recognize the substantial system-level benefits it offers. Key sectors leveraging high-power electronics SiC include:

• Power Electronics: This is arguably the most significant area for SiC. Applications include industrial motor drives, uninterruptible power supplies (UPS), and power factor correction (PFC) circuits. SiC MOSFETs and SiC Schottky diodes enable significantly higher switching frequencies, leading to smaller passive components (inductors and capacitors), reduced power losses, and overall system miniaturization.
• Electric Vehicles (EVs): SiC technology is revolutionizing the EV industry. It’s used in traction inverters, on-board chargers (OBCs), and DC-DC converters. For traction inverters, SiC allows for higher efficiency, leading to increased vehicle range or smaller battery pack sizes. In OBCs and DC-DC converters, SiC facilitates faster charging times and reduced weight and volume. The demand for electric vehicle SiC components is a major driver of the SiC market.
• Renewable Energy Systems: Solar photovoltaic (PV) inverters and wind turbine converters benefit immensely from SiC. The higher efficiency of SiC-based inverters means more electricity can be harvested from solar panels or wind turbines. Their ability to operate at higher voltages also simplifies system architecture for large-scale renewable energy plants. Renewable energy SiC inverters are crucial for improving grid stability and efficiency.
• Radio Frequency (RF) Applications: SiC, particularly semi-insulating SiC substrates, is vital for high-power, high-frequency RF devices like Gallium Nitride (GaN)-on-SiC High Electron Mobility Transistors (HEMTs). These are used in 5G base stations, radar systems, satellite communications, and electronic warfare systems, where high power density and thermal stability are paramount.
• High-Temperature Electronics: SiC’s ability to function reliably at temperatures exceeding 300°C (and sometimes much higher) makes it ideal for electronics deployed in harsh environments, such as downhole drilling in the oil and gas industry, aerospace engine controls, and industrial process monitoring.

The impact of SiC is clearly demonstrated in the following applications:

Application Area	Key SiC Advantage	Specific Devices/Use Cases
Power Conversion & Management	Higher efficiency, reduced size/weight, lower cooling needs	Switched-Mode Power Supplies (SMPS), AC-DC Rectifiers, DC-AC Inverters, Industrial Motor Drives
Electric Vehicles & Transportation	Increased range, faster charging, reduced powertrain volume	Traction inverters, on-board chargers (OBCs), DC-DC converters, railway traction systems
Renewable Energy & Grid Infrastructure	Improved energy harvesting, higher power density, grid stability	Solar (PV) inverters, wind turbine converters, solid-state transformers, HVDC transmission
RF Power & Telecommunications	High frequency operation, high power output, excellent thermal dissipation	5G/6G base station power amplifiers, radar systems, satellite communication transponders
Aerospace & Defense	High-temperature operation, radiation hardness, reliability	Actuation systems, power distribution units, avionics, radar and sensor systems
Industrial Heating & Processing	Efficient power delivery for high-temperature processes	Induction heating power supplies, plasma generation systems

As manufacturers continue to refine SiC device manufacturing processes and costs decrease, the scope of SiC applications in electronics is expected to broaden even further, solidifying its position as a critical material for a more energy-efficient future.

The Custom Advantage: Why Tailored SiC Solutions are Crucial for Electronic Innovations

While standard, off-the-shelf SiC components offer significant benefits, the full potential of silicon carbide in demanding electronic applications is often unlocked through customization. Custom SiC components and tailored solutions allow engineers to optimize device and system performance, meet specific operational requirements, and achieve a competitive edge. Generic components might suffice for some applications, but for cutting-edge innovations or systems operating under unique constraints, a bespoke approach is invaluable.

The primary benefits of opting for custom silicon carbide solutions in the electronics industry include:

• Enhanced Electrical Performance: Customization allows for the fine-tuning of electrical parameters such as breakdown voltage, on-state resistance ($R_{DS(on)}$), switching characteristics, and gate drive requirements. This ensures the SiC device is perfectly matched to the specific voltage, current, and frequency demands of the application, maximizing efficiency and minimizing losses. For instance, a custom SiC MOSFET can be designed with an optimal cell structure and doping profile for a particular power converter topology.
• Superior Thermal Management: While SiC inherently has excellent thermal conductivity, custom designs can further optimize heat dissipation pathways. This can involve specific die geometries, specialized substrate materials, or unique packaging solutions tailored to the thermal environment of the end system. Effective thermal management is crucial for improving reliability and extending the lifespan of high-power electronic devices.
• Application-Specific Form Factors and Integration: Custom SiC components can be designed to fit precise mechanical and spatial constraints within a system. This includes non-standard wafer sizes, unique chip layouts, or integrated modules that combine multiple SiC devices. Such customization facilitates easier system integration, reduces overall system footprint, and can simplify assembly processes.
• Optimized for Specific Operating Conditions: Some electronic systems operate in extreme environments, facing challenges like very high temperatures, high radiation levels, or specific mechanical stresses. Custom SiC solutions can be engineered with materials and designs that enhance resilience to these specific conditions, ensuring reliable operation where standard components might fail.
• Improved System Reliability and Lifetime: By tailoring the SiC component to the exact needs of the application, stresses on the device can be minimized, and potential failure modes can be proactively addressed in the design phase. This leads to improved overall system reliability and a longer operational lifetime, reducing maintenance costs and downtime.

Partnering with a supplier specializing in custom SiC solutions provides access to expertise in material science, device physics, and manufacturing processes. This collaborative approach ensures that the final SiC components are not just high-quality but are also perfectly aligned with the innovative goals of the electronic system designer. Companies seeking to push the boundaries of performance in power electronics, EVs, or renewable energy systems will find that custom SiC offers a distinct advantage.

Navigating SiC Grades: Selecting the Right Material for Electronic Components

Silicon Carbide is not a monolithic material; it exists in various crystallographic forms called polytypes, and can be doped to achieve different electrical characteristics. The selection of the appropriate SiC grade, polytype, and doping level is critical for the performance of electronic devices. Understanding these distinctions is essential for engineers designing and specifying SiC wafers for electronics or discrete components.

The most common polytypes used in electronics are 4H-SiC and 6H-SiC, with 4H-SiC being dominant for most power electronic applications due to its higher electron mobility and more isotropic properties. Beyond polytypes, SiC wafers can be conductive (N-type or P-type doped) or semi-insulating.

SiC Polytype/Grade	Key Characteristics	Primary Electronic Applications	Considerations for Procurement
4H-SiC	High electron mobility (especially perpendicular to c-axis), high critical electric field, good thermal conductivity. Wide bandgap (~3.26 eV).	Preferred for high-voltage power devices (MOSFETs, Schottky Barrier Diodes – SBDs, IGBTs), high-frequency power electronics, high-temperature sensors.	Most common and developed polytype for power electronics. Quality (low defect density, e.g., micropipes) is crucial. Available in N-type, P-type, and semi-insulating forms.
6H-SiC	More mature growth technology historically, good thermal conductivity. Wide bandgap (~3.03 eV). Lower electron mobility and more anisotropic than 4H-SiC.	Previously used for blue LEDs, some high-power devices. Largely superseded by 4H-SiC for new power device designs. Still used in some niche applications.	Less preferred for high-performance power devices compared to 4H-SiC due to lower mobility and higher anisotropy.
High-Purity Semi-Insulating (HPSI) SiC	Very high electrical resistivity ($> 10^9 Omega cdot cm$), low RF losses, excellent thermal conductivity. Typically 4H-SiC or 6H-SiC.	Substrates for Gallium Nitride (GaN) High Electron Mobility Transistors (HEMTs) used in RF power amplifiers (e.g., 5G base stations, radar), microwave applications.	Purity (vanadium compensation or intrinsic) and surface quality are critical for GaN epitaxy and device performance. Low residual donor/acceptor concentration needed.
N-type Doped SiC	Conductive due to excess electrons. Typically doped with Nitrogen (N). Resistivity can be precisely controlled.	Used for drift layers in power devices, channel regions in MOSFETs, Schottky diode cathodes, SiC substrates for homoepitaxy.	Doping concentration uniformity and control are key for device parameters like breakdown voltage and on-resistance.
P-type Doped SiC	Conductive due to excess holes. Typically doped with Aluminum (Al) or Boron (B). Higher activation energy for dopants than N-type.	Used for body regions in MOSFETs, channel regions in JFETs, anode layers in PiN diodes and SBDs, some contact layers.	Achieving low resistivity P-type SiC can be challenging. Activation of dopants requires high-temperature annealing.

The choice of SiC grade directly impacts device characteristics such as blocking voltage, on-resistance, switching speed, and thermal performance. For procurement managers and technical buyers, it is essential to specify not just “silicon carbide” but the precise polytype, conductivity type (N-type, P-type, or semi-insulating), doping concentration (or resistivity range), crystal orientation, and quality metrics (e.g., micropipe density, stacking fault density, surface roughness). Working with knowledgeable silicon carbide suppliers who can provide guidance on material selection and offer high-quality, consistent wafers or custom epitaxial structures is crucial for successful device fabrication and performance. These suppliers often provide advanced SiC materials tailored for specific electronic applications, ensuring optimal outcomes.

Precision Engineering: Critical Design Considerations for SiC Electronic Devices

Designing electronic devices with Silicon Carbide requires a nuanced understanding of its unique material properties to fully harness its potential. While SiC offers superior performance metrics, engineers must address specific design considerations that differ significantly from traditional silicon-based designs. These considerations span electrical, thermal, and mechanical aspects, all crucial for developing reliable and efficient SiC power modules and discrete components.

Electrical Design Aspects:

• Breakdown Voltage ($V_{BR}$): SiC’s high critical electric field allows for much thinner drift regions for a given blocking voltage compared to silicon. This reduces on-state resistance but requires careful management of electric fields, especially at termination edges, to prevent premature breakdown. Edge termination techniques like JTE (Junction Termination Extension) or field rings must be meticulously designed.
• On-State Resistance ($R_{DS(on)}$ for MOSFETs, $V_F$ for Diodes): Minimizing on-state resistance is key to reducing conduction losses. This involves optimizing channel mobility (for MOSFETs), drift region doping and thickness, and contact resistance. SiC MOSFET channel mobility can be affected by interface traps at the SiO2/SiC interface, necessitating advanced gate dielectric processing.
• Switching Speed and Dynamics: SiC devices can switch much faster than Si devices, leading to lower switching losses. However, fast dV/dt and dI/dt rates can induce electromagnetic interference (EMI) and voltage overshoots/ringing due to parasitic inductances and capacitances in the circuit. Gate driver design is critical, requiring precise control of gate current and voltage to manage switching speed and protect the gate oxide. Kelvin source connections are often used in SiC device packages to minimize source inductance effects on gate drive.
• Gate Drive Requirements (for MOSFETs): SiC MOSFETs typically have different gate voltage requirements (e.g., $V_{GS(th)}$, recommended $V_{GS(on)}$, $V_{GS(off)}$) compared to Si MOSFETs. The gate oxide is also a sensitive part; ensuring it’s not overstressed during operation is crucial for long-term reliability. Negative gate bias during the off-state is often recommended to prevent inadvertent turn-on due to dV/dt.
• Short-Circuit Withstand Time (SCWT): Due to higher power densities, the SCWT of SiC MOSFETs can be shorter than Si IGBTs. This needs careful consideration in protection circuit design.
• Body Diode Performance (for MOSFETs): The intrinsic body diode of SiC MOSFETs has a higher forward voltage drop and can suffer from bipolar degradation in some cases. While its performance has improved, external SiC SBDs are sometimes used in parallel for demanding freewheeling applications.

Thermal Management Strategies:

SiC’s high thermal conductivity helps in heat extraction, but the higher power densities achievable also mean more concentrated heat sources. Effective thermal design involves:

• Minimizing thermal resistance from the SiC die to the heatsink. This includes die attach materials, substrate materials (e.g., AlN, Si3N4 for DBC substrates), and package design.
• Considering the coefficient of thermal expansion (CTE) mismatches between SiC and packaging materials to prevent mechanical stress and fatigue.
• Employing advanced cooling techniques (e.g., liquid cooling, double-sided cooling) for very high-power modules.

Mechanical and Packaging Integration:

The mechanical properties of SiC (hard and brittle) and the high operating temperatures and frequencies influence packaging choices.

• Low-inductance packaging is essential to exploit the fast switching speeds of SiC devices.
• Packaging materials must withstand high operating temperatures and provide reliable interconnects.
• Wire bonding and die attach processes need to be optimized for SiC.

Designing for manufacturability, considering geometry limits, wall thickness for ceramic components if used in packaging, and stress concentration points are also vital. Close collaboration between device designers and custom SiC product manufacturers is key to addressing these multifaceted considerations effectively.

Achieving Perfection: Tolerances, Surface Quality, and Finishing for SiC Electronics

The performance and reliability of Silicon Carbide electronic devices are profoundly influenced by the dimensional accuracy, surface quality, and finishing of the SiC wafers and epitaxial layers upon which they are built. For procurement professionals and engineers specifying SiC substrates and epiwafers, understanding the achievable tolerances and their impact is critical. Stringent control over these parameters is essential throughout the manufacturing process, from crystal growth and wafering to epitaxy and final surface preparation.

Key aspects related to tolerance, surface finish, and dimensional accuracy for SiC electronics include:

• Wafer Flatness and Thickness Variation (TTV): High-quality SiC wafers must exhibit exceptional flatness (e.g., bow, warp, sori) and minimal total thickness variation (TTV) across the entire wafer. These parameters are crucial for photolithography processes, ensuring uniform feature definition during device fabrication. Deviations can lead to issues with depth of focus, resulting in inconsistent device characteristics and reduced yields. Suppliers of technical ceramics SiC for electronic applications must adhere to tight flatness specifications.
• Surface Roughness (Ra, Rq, Rms): The surface of SiC wafers, especially after Chemical Mechanical Polishing (CMP), must be extremely smooth, typically with an atomic-level flatness (Ra < 0.5 nm, often < 0.2 nm). A smooth, defect-free surface is paramount for the subsequent growth of high-quality epitaxial layers. Any residual subsurface damage or surface roughness can propagate defects into the epi-layer, detrimentally affecting device performance (e.g., gate oxide integrity, leakage currents).
• Epitaxial Layer Uniformity: For SiC devices, active layers are typically grown epitaxially on a SiC substrate. The thickness and doping concentration of these epitaxial layers must be highly uniform across the wafer and from wafer to wafer. Variations can lead to inconsistent device parameters like threshold voltage, breakdown voltage, and on-resistance. Advanced epitaxial growth techniques (e.g., CVD) and precise process control are necessary to achieve this.
• Defect Density (Micropipes, Stacking Faults, Dislocations): SiC crystal growth is challenging, and various types of crystallographic defects can occur. Micropipes (hollow core screw dislocations) are particularly detrimental as they can cause premature device breakdown. Basal plane dislocations (BPDs) in the substrate can also lead to stacking faults in the active device layers during operation, causing an increase in on-resistance for bipolar devices. Specifying low defect density wafers is crucial, especially for high-voltage and high-reliability applications.
• Edge Exclusion and Chip Yield: The usable area of a wafer is defined by an edge exclusion zone, where device yield is typically lower due to edge defects or processing inconsistencies. Minimizing this exclusion zone through better wafer shaping and edge polishing can increase the number of good dies per wafer, directly impacting cost.

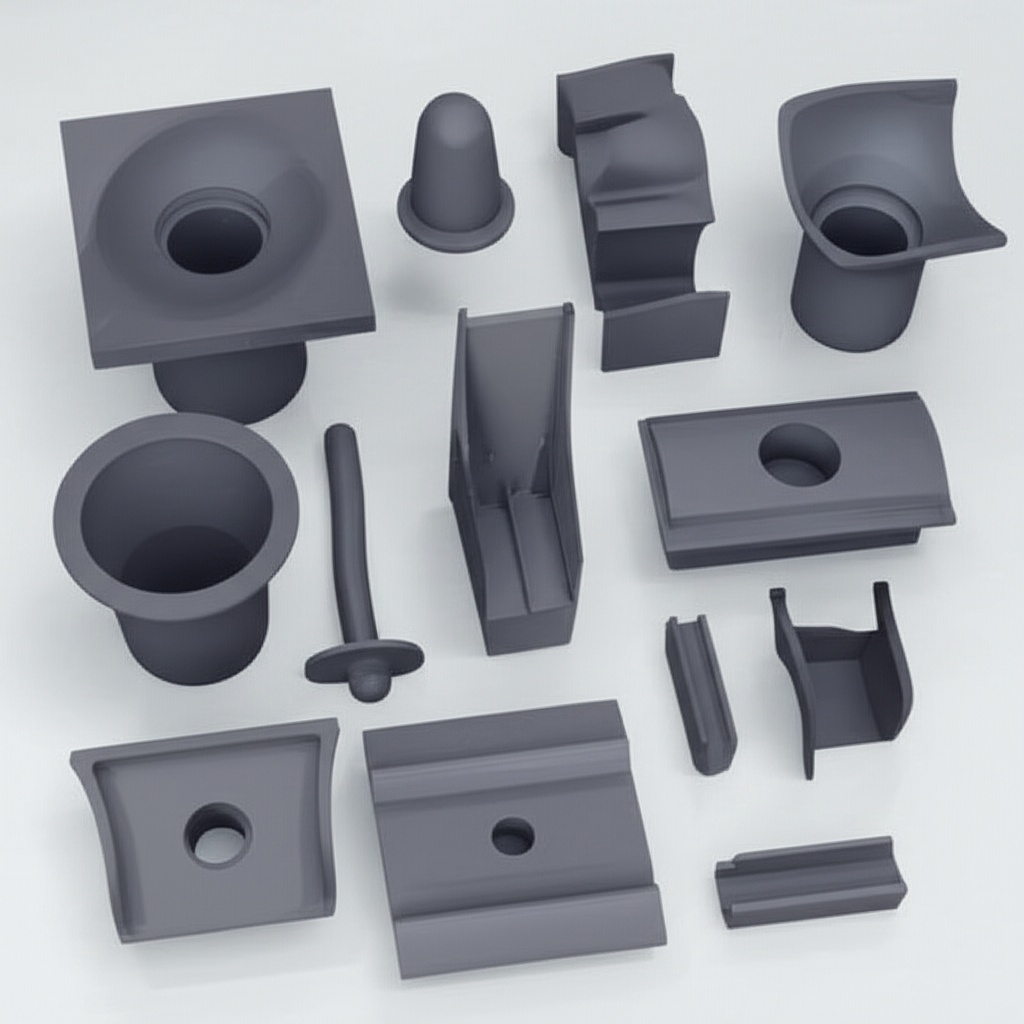

• Dimensional Accuracy of Custom Components: For custom-shaped SiC components used as heat spreaders, substrates for hybrid modules, or insulators, precise dimensional control (length, width, thickness, parallelism, perpendicularity) is essential for proper assembly and thermal performance.

Achievable tolerances for SiC wafers are typically in the micrometer range for dimensions like diameter and thickness, while flatness and TTV are controlled to even tighter limits. Surface finish options after CMP result in mirror-like surfaces. Precision capabilities in grinding, lapping, and polishing are fundamental to meeting these stringent requirements. When sourcing SiC wafers electronics grade, it’s important to clearly define these specifications with the supplier to ensure the material is fit for the intended high-performance application.

Beyond Fabrication: Essential Post-Processing for SiC Electronic Components

Once the fundamental Silicon Carbide device structures are fabricated on the wafer, a series of critical post-processing steps are necessary to transform these structures into functional, reliable, and packageable electronic components. These steps are as crucial as the initial wafer processing and epitaxy, significantly impacting device performance, yield, and cost. For industries relying on SiC device manufacturing, understanding these post-processing needs is vital for efficient production and high-quality output.

Common and essential post-processing steps for SiC electronic components include:

1. Wafer Backgrinding and Thinning: After front-side device fabrication, SiC wafers are often thinned from the backside. This reduces the thermal resistance of the die, improving heat dissipation, and can also reduce on-state resistance for vertical power devices. Specialized grinding techniques are used due to SiC’s hardness, followed by stress relief processes like CMP or dry polishing to remove grinding-induced damage.
2. Backside Metallization: For vertical power devices, a metal layer is deposited on the backside of the wafer to form the drain (for MOSFETs) or cathode (for diodes) contact. This layer typically consists of multiple metals (e.g., Ti/Ni/Ag or Ti/Ni/Au) to ensure good ohmic contact, solderability, and thermal conductivity. The choice of metals and deposition techniques (e.g., sputtering, evaporation) is critical for low contact resistance and long-term reliability.
3. Wafer Dicing (Singulation): Once all front-side and backside processing is complete, the wafer is diced into individual chips (dies). Due to SiC’s hardness and brittleness, laser dicing or specialized diamond blade sawing techniques are employed. The dicing process must minimize chipping, cracking, and kerf loss to maximize die yield and maintain die strength. Stealth dicing is an increasingly popular method.
4. Die Attach: The singulated SiC dies are then attached to a leadframe, Direct Bonded Copper (DBC) substrate, or other package base. Die attach materials (e.g., solder, silver sintering paste, epoxy) must provide good thermal and electrical conductivity, mechanical strength, and withstand high operating temperatures. Silver sintering is preferred for high-power SiC devices due to its high thermal conductivity and reliability.
5. Wire Bonding / Interconnects: Electrical connections are made from the bond pads on the SiC die to the package leads or substrate. Aluminum (Al) or copper (Cu) wires are commonly used, attached via ultrasonic or thermosonic bonding. For high-power applications, copper wires or ribbon bonding are favored due to better current handling and thermal performance. Flip-chip bonding or copper pillar bumps are also emerging for advanced packaging.
6. Passivation and Encapsulation: Additional passivation layers might be applied to protect the die surface and sensitive junctions from environmental contaminants and mechanical stress, especially around the termination regions. The entire assembly is then typically encapsulated in a molding compound (for discrete packages) or housed in a module casing filled with silicone gel or other protective material to ensure electrical isolation and mechanical stability.
7. Device Testing and Sorting: Each diced and/or packaged device undergoes rigorous electrical testing to ensure it meets specifications for parameters like breakdown voltage, leakage current, on-state resistance, and switching characteristics. Devices are sorted (binned) based on their performance. High-temperature reverse bias (HTRB) and other stress tests are often performed to screen for early failures.

Each of these post-processing steps requires specialized equipment and expertise. For companies looking to buy silicon carbide components or develop their own, understanding the complexities of these back-end processes is crucial for achieving optimal device performance, reliability, and cost-effectiveness. Collaborating with suppliers who have robust post-processing capabilities can streamline the supply chain and ensure higher quality final products.

Overcoming Hurdles: Addressing Common Challenges in SiC Electronics Manufacturing

While Silicon Carbide offers transformative advantages for the electronics industry, its widespread adoption and manufacturing are not without challenges. The unique material properties of SiC, which make it so attractive for high-power and high-frequency applications, also present significant hurdles in crystal growth, wafer fabrication, device design, and overall cost. Addressing these challenges is key to unlocking the full potential of advanced SiC materials and making them more accessible.

Common challenges in SiC electronics manufacturing and how they are being tackled include:

• Crystal Defect Reduction: SiC single crystal growth (typically via Physical Vapor Transport – PVT) is a complex, high-temperature process. Defects such as micropipes (MPs), screw dislocations, basal plane dislocations (BPDs), and stacking faults (SFs) can form during growth or subsequent epitaxy. These defects severely impact device yield, performance (e.g., leakage current, reliability), and can cause premature failure.
  Mitigation: Significant R&D efforts have led to improved crystal growth techniques, such as advanced seeding methods, optimized temperature gradients, and defect-reduction epitaxial growth processes (e.g., LPE healing, BPD to TED conversion). Stringent material inspection and quality control are also vital.
• Gate Oxide Reliability in SiC MOSFETs: The interface between the SiC and the gate dielectric (typically SiO2) in MOSFETs is a critical area. This SiO2/SiC interface tends to have a higher density of interface traps ($D_{it}$) and near-interface oxide traps (NIOTs) compared to the Si/SiO2 interface. These traps can reduce channel mobility, cause threshold voltage instability, and impact long-term reliability under high electric fields and temperatures.
  Mitigation: Post-oxidation annealing in nitric oxide (NO) or other nitrogen-containing ambients has been very effective in passivating interface traps and improving gate oxide quality. Alternative gate dielectrics and advanced interface engineering techniques are also under investigation.
• Cost-Effective Epitaxy and Doping: High-quality epitaxial layers with precisely controlled thickness and doping profiles are essential for SiC devices. Achieving this with high throughput and low cost remains a challenge. P-type doping in SiC (typically with Aluminum) is particularly difficult due to the high activation energy of acceptors, requiring high-temperature post-implantation annealing which can damage the surface.
  Mitigation: Advancements in Chemical Vapor Deposition (CVD) reactor design, improved precursor materials, and optimized annealing processes are helping to improve epi-layer quality and reduce costs. Ion implantation techniques are also being refined for better dopant activation and reduced damage.
• High-Temperature Processing and Ohmic Contacts: Many SiC fabrication steps, including crystal growth, epitaxy, dopant activation annealing, and ohmic contact formation, require very high temperatures (often >1500°C). These high temperatures pose challenges for equipment, process control, and material compatibility. Forming stable, low-resistance ohmic contacts to both N-type and P-type SiC is crucial but difficult.
  Mitigation: Development of specialized high-temperature processing equipment and new contact metallization schemes (e.g., Ti/Al for P-type, Ni-silicides for N-type) followed by rapid thermal annealing (RTA) are addressing these issues.
• Device Parameter Uniformity and Yield: Ensuring tight control over device parameters (e.g., $V_{th}$, $R_{DS(on)}$) across a wafer and from wafer-to-wafer is essential for large-scale manufacturing. Variations in material quality
